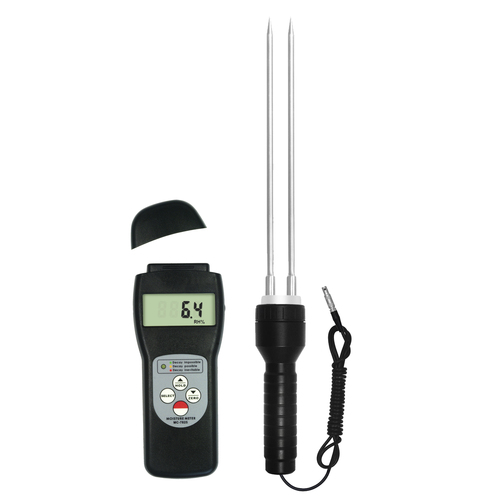

Cocoa Bean Moisture Meter MC-7825COCOA
Spec：
Be a powerful instrument for measuring and diagnosing dampness in cocoa. Widely used for fast and accurate measurement of moisture in the process of allotment, acquisition, storage, machining of pack
Model：
MC-7825COCOA
产品详情
Features
* Digital display gives exact reading with no guessing or errors while a colour coded light (LED) indicates the moisture condition of the material. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably. * Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value. * Wide measuring range and high resolution. * Automatic power off to conserve power. * Can communicate with PC computer for statistics and printing by the optional USB cable or bluetooth adapter.
Display
LCD
LED Indicator
Green LED Represents a Safe,Air-dry State
Yellow LED Represents a Borderline State
Red LED Represents a Damp State
Range
0~24%
Resolution
0.1
Battery Indicator
Low Battery Indicator
Accuracy
±0.5%n or ±0.5%(Whichever is the greater)
Operating Conditions
Temperature
0~50ºC
Humidity
<90%RH
Power Supply
4X1.5V AAA Size(UM-4)Battery
Dimensions
Main Unit
165x62x26 mm or 6.5x2.4x1.0 inch
Sensor
475x45x45 mm or 18.7x1.8x1.8 inch
Length of pin
290mm
Diameter of pin
6mm
Distance between 2 pins
14mm
Weight
365g(not including batteries but including the probr)
NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
