NDT and Photoelectric Measurements

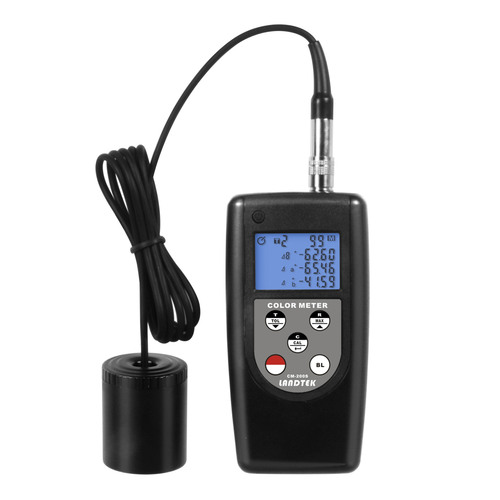

Color Meter CM-200S
Spec: The meter is an extremely compact, extremely easy-to-use tristimulus colormeter specially designed for measuring the color difference between two colors.
Model: CM-200S


The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.
* Color difference displayed ∆(L*, a*, b*), ∆(E*ab, C*ab, H*ab), ∆(Y, x, y), ∆(X, Y, Z), ∆(Rs, Gs, Bs) or ∆(WI, YI, Tw).
* Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
* Statistical function (Maximum, Minimum, Average and Standard Deviation).
* Color difference tolerance set to perform PASS / WARN / FAIL.
* Store 9 color-difference target colors.
* User calibration function ensures higher accuracy.
* Auto memory (99 sets) & Read function.
* Digital backlight display.
* Auto power off function.
* Applies USB, Bluetooth data output.
* Use USB data output to connect with PC.






NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
