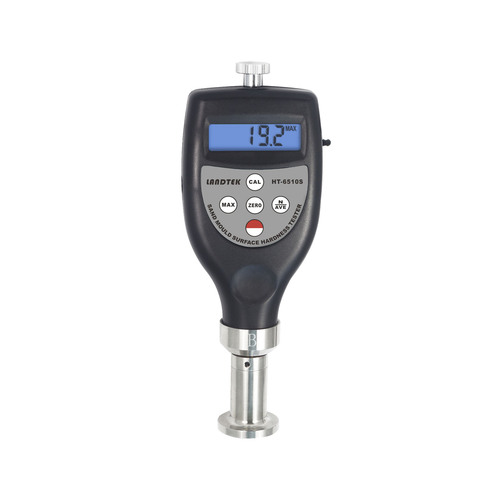

Sand Mould Surface Hardness Tester HT-6510S-B
Spec: The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.
Model: HT-6510S-B
产品详情

 Features

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

* The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:
    Type A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
    Type B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
    Type C: Suitable for the surface hardness test of sand mold in high pressure molding.
* The unit of type B hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

 Selection Guide


 Specifications

Model
HT-6510S-A
HT-6510S-B
HT-6510S-C
Stroke
2.50mm
2.50mm
2.50mm
Load
237g
980g
1500g
Pressure Load
90g
50g
180g
Shape and size of indenter
Spherical R2.50
Spherical R12.70
Spherical R1.20
Unit
HA
HB
HC
Display
4 digits, 10mm LCD
Parameters
Tested Result / Mean Value / Max. Value
Display Range
0H~100H(A/B/C)
Testing Range
10H~90H(A/B/C)
Accuracy
≤±1H(A/B/C)
Resolution
0.1H(A/B/C)
Battery Indicator
Low Battery Indicator
Auto Switch Off

Operating
Temperature: 0°C~40°C    Humidity: <80%RH
Power Supply
2x1.5V AAA (UM-4) Battery
Dimensions
162mmx65mmx28mm
Weight
170g
Standard Accessories
Main Unit

Carrying Case (B04)

Operation Manual
Optional Accessories
USB Data Cable with Software

Bluetooth Data Adapter with Software

 Downloads

  SandMouldSurfaceHardnessTester_HT-6510S-B_Catalog

  HT-6510S-B_EN_Manual

  RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
