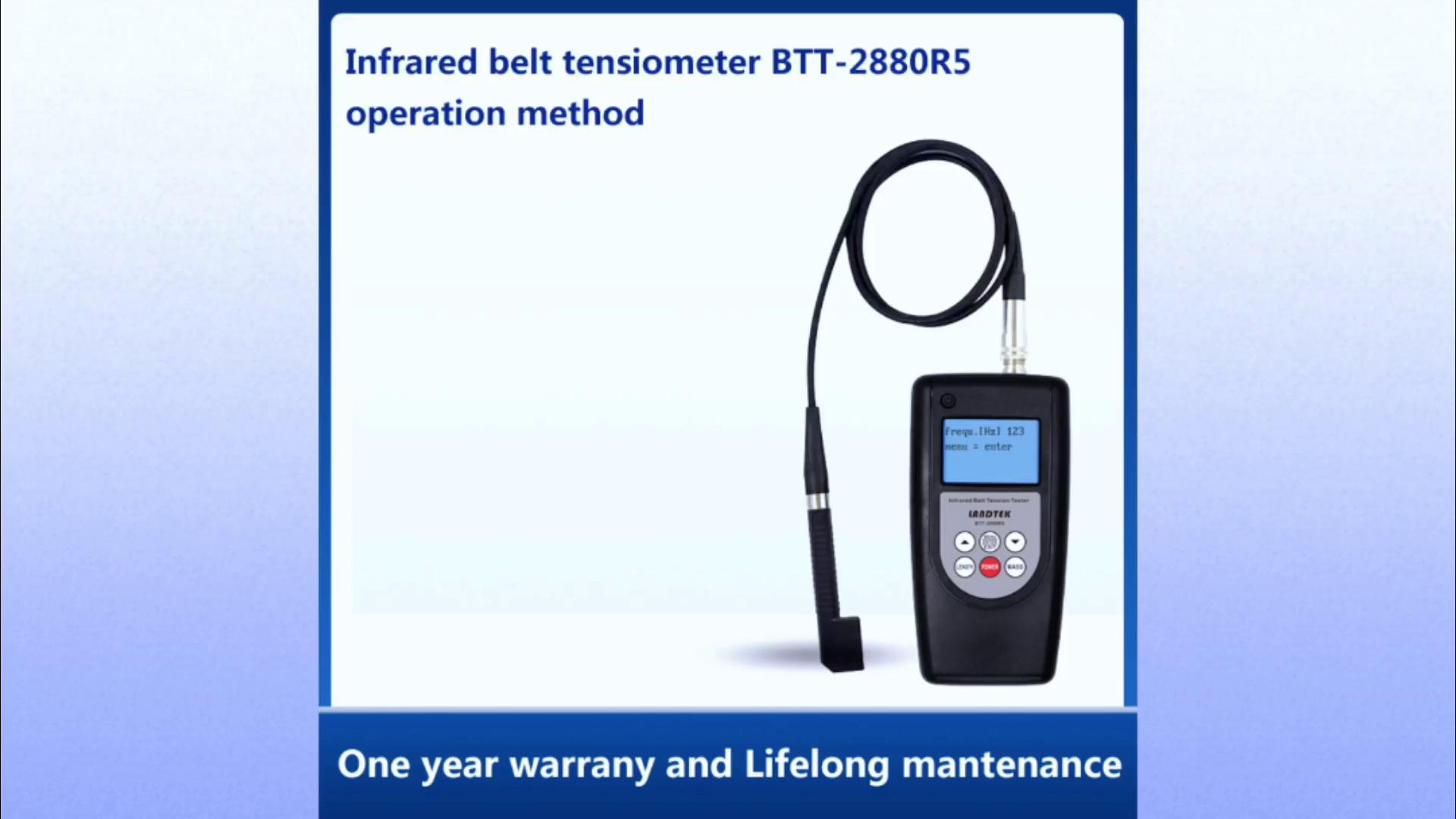

Infrared Belt Tension Tester BTT-2880R5
Spec: The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.
Model: BTT-2880R5
产品详情

 Features

* Using laser sensor, direct measurement, more convenient than mechanical sensor.
* The size of the split sensor is small, which is suitable for measuring in a narrow space.
* Two kinds of sensors selectable, the integrated sensor and the split sensor.
* Metric or imperial units can be used to display readings.
* With automatic power off function.

 Measuring Principle

This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.

 Specifications

Measurement Range10Hz~500Hz
Input RangeFree Belt Length Max 99.99m

Belt Mass Max 9.999kg/m
Digital Sampling Error<1%
Display Error±1Hz
Total Error<5%
Operating Temperature Range+10°C~50°C
Transportation Temperature Range-5°C~50°C
Unit of Measurement
Metric: m, kg/m, N

Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance
3mm~20mm
Depth of Split SensorAbout 66mm
Power Supply4x1.5V AAA (UM-4) Battery
SizeMain Unit: 178mmx72mmx34mm

Sensor: 124mmx21mmx12mm
Weight
180g (Not Including Battery)
Standard Accessories
Main Unit

Split Sensor

Carrying Case (B04)

Operation Manual

 Downloads

InfraredBeltTensionTeste_BTT-2880R5_Catalog

BTT-2880R5_EN_Manual
