Features
* High accuracy and high resolution.
* A variety of measuring units for choice, mutual conversion.
* With peak value hold function.
* Can use alkaline battery power; External power supply is also available.
Principle

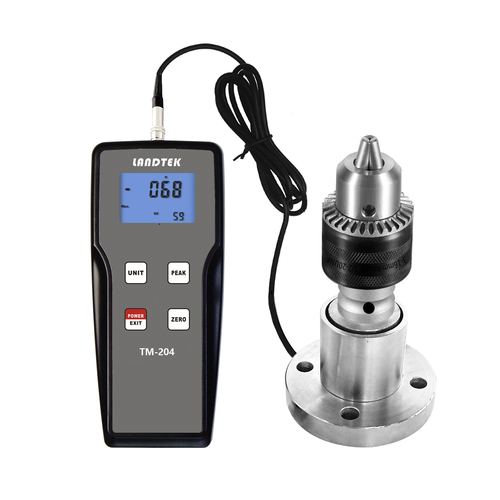

Digital display hand-held torque meter is a small, simple, multi-functional and high-precision torque meter testing instrument, widely used in electronic appliances,
building hardware, light industry textileTorque load of weaving, auto parts, lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing tackle, chemical industry, power machinery, scientific research institutions and other industries,Test, etc.
Specifications
Model | TM-204-1N.m | TM-204-5N.m | TM-204-20N.m |
Force Range | ±0.1kgf.m | ±0.5kgf.m | ±2kgf.m |
| ±100gf.m | ±500gf.m | ±2000gf.m |
| ±1N.m | ±5N.m | ±20N.m |
| ±0.2Lbf.m | ±1.1Lbf.m | ±4.4Lbf.m |
| Resolution | 0.001kgf.m | 0.001kgf.m | 0.001kgf.m |
1gf.m | 1gf.m | 1gf.m |
| 0.01N.m | 0.01N.m | 0.01N.m |
| 0.001Lbf.m | 0.001Lbf.m | 0.001Lbf.m |
Standard three-jaw chuck size | 0.6mm-6mm | 1.5mm-13mm | 3mm-16mm |
Accuracy | ± 0.5%FS ± 1Digit |
| Unit | kgf, gf, N, Lbf |
Measurement State | Peak Value Measurement, Real Time Measurement |
| Display | Four large LCD, large screen display |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
Backlight | Blue Backlight |
| Safe Load | 150%FS (Buzzer Alarm Over 110%FS) |
| Power Supply | 2x1.5 AA(UM-3) Battery or 5V DC Power Supply |
Operating Conditions | Temperature: 0~40°C Humidity: <80% |
| Surrounding | No Vibration Source or Corrosive Medium Around |
| Size | Main Unit: 211x80x36mm |
| The host weight | 390g |
